ZF-K20TX
Specification:
| Model | ZF-K20TX |
| Packing Speed | 6-10 boxes/minute |
| Machine Size L*W*H(mm) | 2050*1950*1450 |
| Carton size | L(180-250)*W(85-200)*H(100-250)mm |
| Power supply | 1P/220V/50HZ/0.4KW |
| Net weight | 400KG |
| Tape size | W48mm*1000 yards |
Introduction

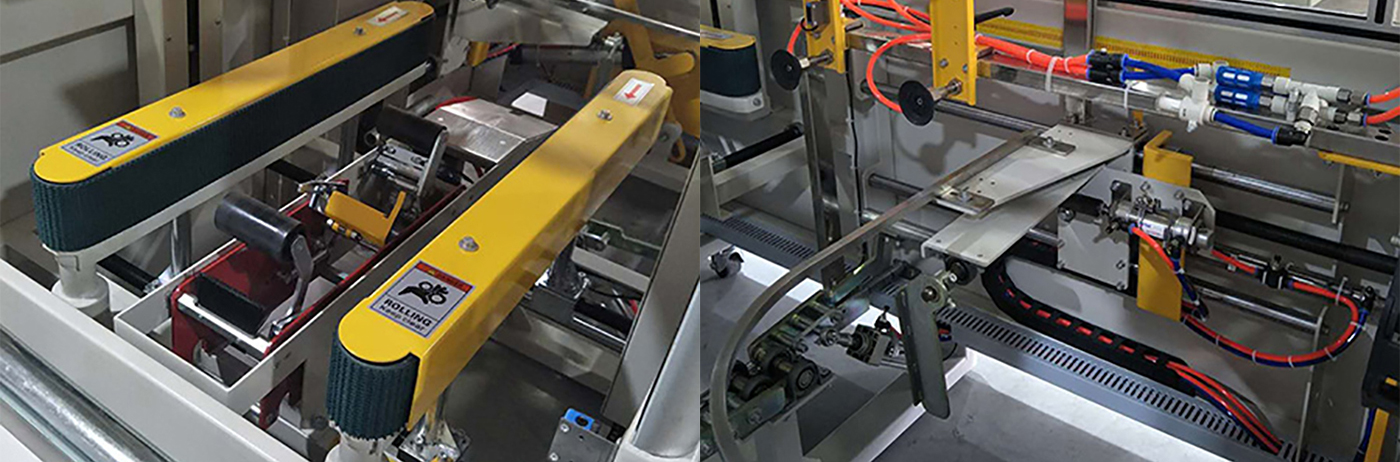

Carton erector machine ZF-K20TX, automatically opens the carton board, folds it into shape, and seals the bottom tape. The speed can reach 10 cases/min. Man-machine interface control, fault display, more convenient maintenance; automatic alarm for lack of material; feeding does not need to stop, does not affect production, and better improves production efficiency.
Features
1. It is manufactured with international advanced technology, and imported parts, electrical components and pneumatic components are selected.
2. It adopts the vertical storage cardboard method, and can replenish the cardboard box at any time without stopping the machine.
3. It is suitable for packaging and using the same carton size at the same time. If you need to change the carton size, you can manually adjust it. It takes 1-2 minutes.
4. Reasonable design, simultaneous absorption and forming, folding and back cover forming simultaneously.
5. Lightweight, precise and durable mechanical parts, no vibration during operation, stable operation, long life and high efficiency.
6. Add a transparent plexiglass protective cover to avoid accidental operation.
7. It can be operated on a stand-alone machine or used in conjunction with an automated packaging line.
